SYMAP®ARC is a protection system that detects an electric arc caused by a short circuit through an optical sensor and the load current input on the system to ensure the fast clearance of arc faults on an electrical system with short tripping time (< 2ms).
Arc protection system for low and medium voltage applications
modular, expandable system with easy DIN rail installation
stainless steel housing for high EMC safety
simple system: tripping only with light criteria
complex system: arc detection and tripping, current rate of change detection (di/dt), zone and cable compartment selectivity
protects human life
reduces damage impact
improves availability of vessels or plants
Modules
Modules
Master module
Master module

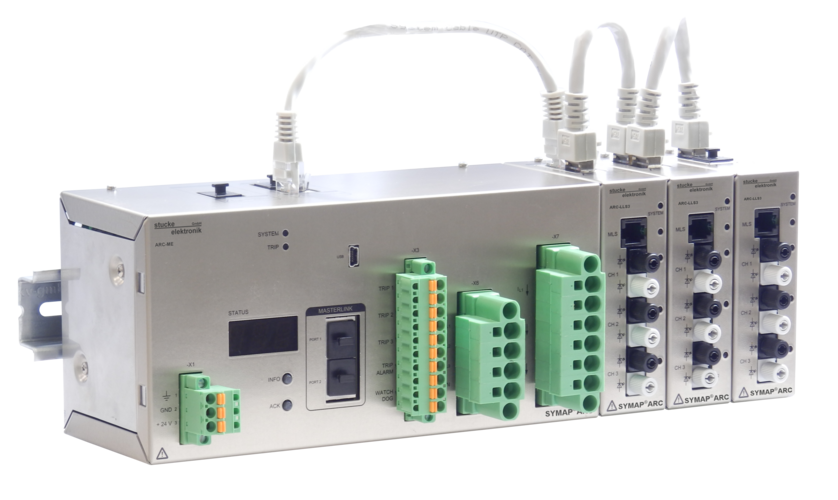

ARC-MS
Master Simple module providing trip contacts and interlink to connect light detection modules
ARC-ME
Master Extended module providing trip contact, current measurement and interlink to connect light detection modules. Optional HMI and quenching device
Light detection module
Light detection module
ARC-LS3T
Up-to 3 Light Sensors and one fast Tripping output
Optional module
Optional module

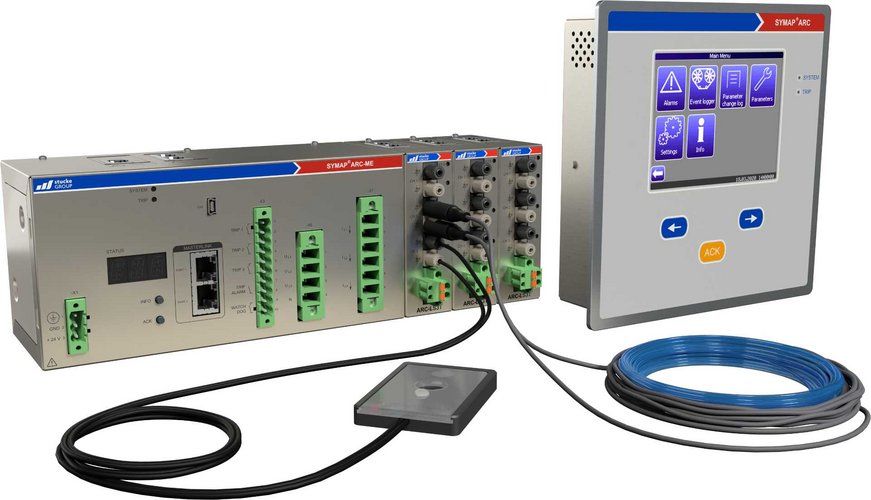

ARC-HMI
Human Machine Interface to operate the extended arc protection system
ARC-IGN-A
IGNition module including system cable to operate external quenching device
Light sensors
Light sensors
ARC-LLS
Light Line Sensor length: 10/15/20/25m active sensor part is 5 m less
ARC-LPS
Light Point Sensor length: 3/5/10m intermediate sizes available
Protection systems
Protection systems
SIMPLE arc protection system
SIMPLE arc protection system
Features:
stainless steel housing
easy mounting on DIN rail TS35
up-to 31 light detection modules can be connected to the master module via INTERLINK communication
up-to 100m of INTERLINK length between the master module and the last connected light detection module
15 segment displays for status and alarms
3 fast binary outputs with ≤ 2ms tripping time
1 binary output for alarm indication
1 binary Watch Dog output (system supervision)
no parameter setting required!
EXTENDED arc protection system
EXTENDED arc protection system
(Parameterizing required)
Features:
included are all features of Level 1! PLUS…
voltage and current measurement
rate of change of current di/dt as additional protective criterion for a safe tripping in fault conditions
SYMAP®ARC Parameter Tool (SAPT) allows easy system configuration and adaptation to the individual application
cable compartment selectivity
Options
optional connection of ARC-IGN-A to operate separate quenching device
optional connection of detached Human Machine Interface ARC-HMI for user-friendly operation
COMPLEX arc protection system
COMPLEX arc protection system
Features:
Included are all features of Level2! PLUS…
up-to 8 extended arc protection systems can be linked together via MASTERLINK connection
up-to 100m MASTERLINK length between 2 ARC-ME master modules
