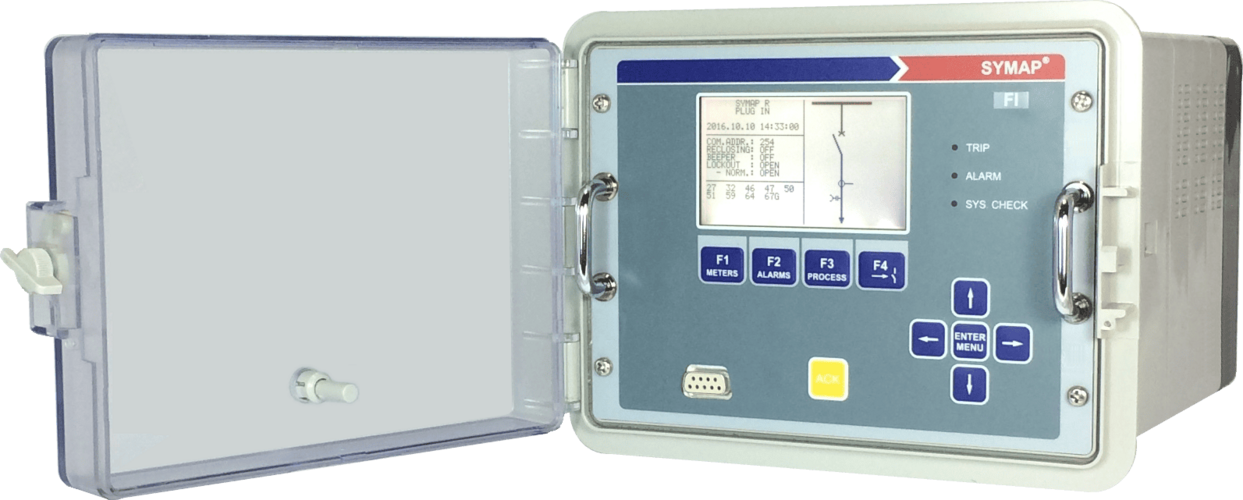

SYMAP®R

SYMAP®R (Retrofit) is a digital protection system for medium and high voltage switchboards on vessels. As part of obsolescence management, this device was specially developed as an efficient plug-in retrofit solution for the following protection devices:

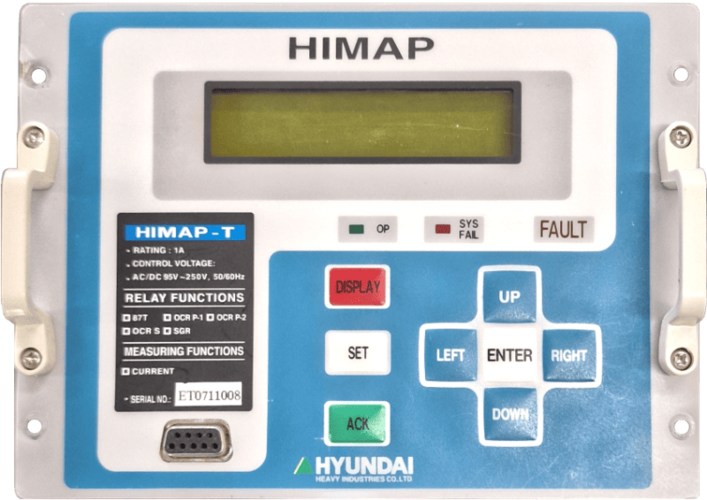

HIMAP FI feeder protection
HIMAP MI motor protection
HIMAP 87M motor differential current detection
HIMAP TI transformer differential current detection

SYMAP®R offers the following versions:

SYMAP®R-FI

feeder protection

SYMAP®R-MI

motor protection

SYMAP®R-87M

motor differential current detection

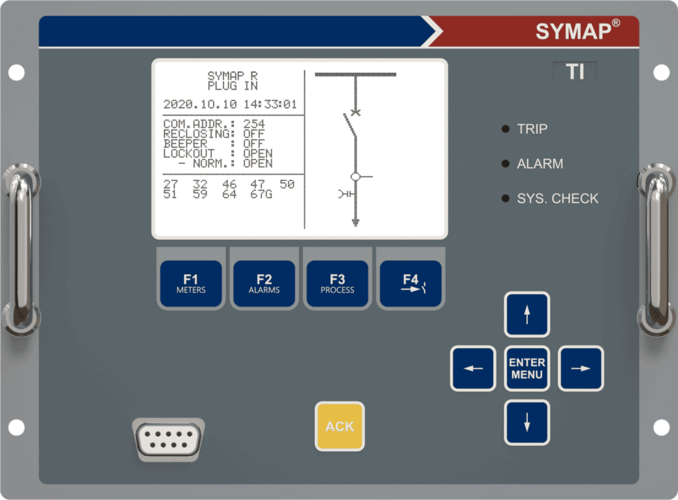

SYMAP®R-TI

transformer differential current detection

Installation is easy as there is no need for cutting the cabinet or for wiring. Parameter settings can be adopted from the former device. After retrofitting to SYMAP®R you benefit from high reliability of the device, thus having a positive effect on your operational costs.

Being equipped with three powerful micro-processors, SYMAP®R offers all protection functions for generators, motors (synchronous and asynchronous), transformers, power lines and distributions. All protection functions can be activated at the same time. An integrated PLC enables individual locking of the control functions. A variety of serial interfaces with a wide range of protocols enable communication between SYMAP®R devices and the central control system.

Your benefits

  • reliable SYMAP® technology, increased safety
  • updated design
  • efficient plug-and-play retrofit solution
    • no mechanical and wiring work
    • simple data conversion
    • adherence to short inspection windows, for example during docking
  • the stuckeGROUP worldwide service network is your partner for the after-sales-service
