SYMAP®Compact

SYMAP®Comapct is a digital protection and control device for use in low and medium voltage systems, equipped with three powerful processors and comprehensive protection functions for generators, motors (synchronous and asynchronous), transformers, power lines and distributions. The protective functions can be activated and used at the same time without restrictions. To ensure maximum flexibility during commissioning and use, both the digital and analog outputs can be connected to the main control panel via the SYMAP®Compact+ control. Furthermore, it is possible for the SYMAP®Compact+ and the station control technology to communicate with each other via a variety of serial interfaces and different data protocols. The device's wide range of programming options with a user-friendly operating software allows for extensive and cost-efficient application options.

Applications

Digital protection and control system for energy generation and distribution systems for low, medium and high voltage applications

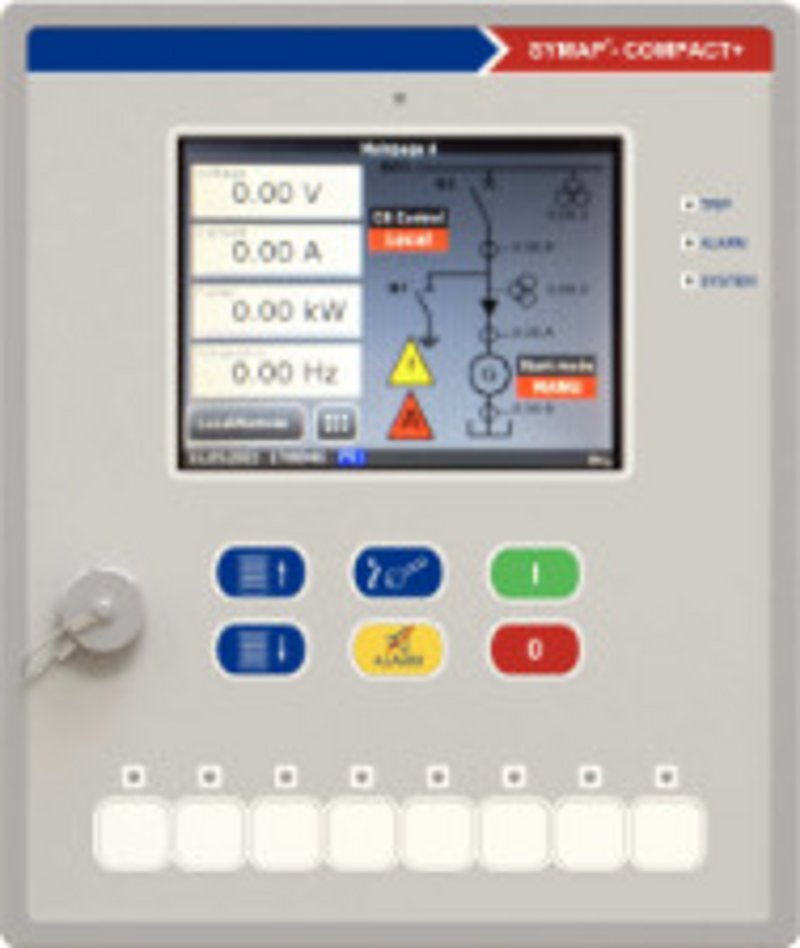

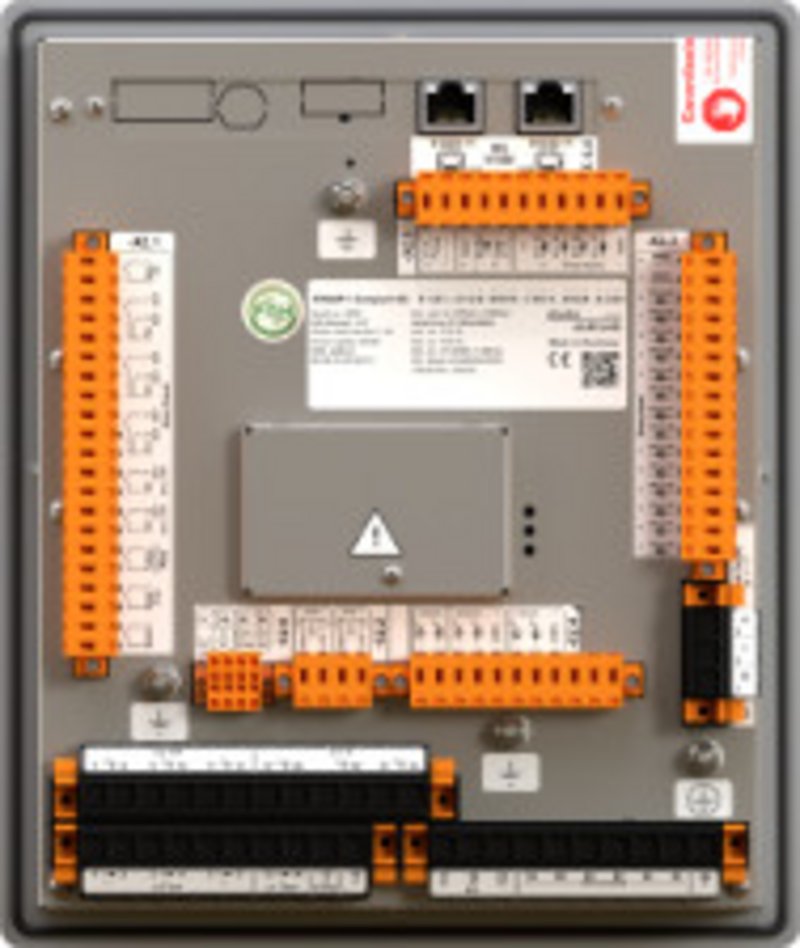

SYMAP®Compact

protection and control device for safety classes F0, F1, F2, F3 and F4 and generator protection type GC

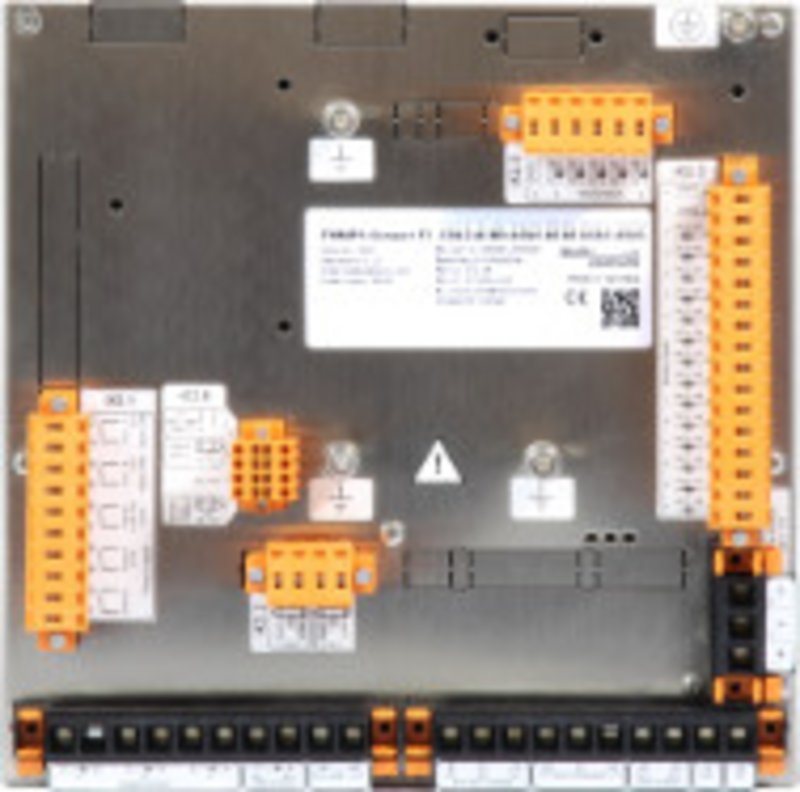

SYMAP®Compact+

protection and control device for safety classes +F1, +F2, +F3 and +F4 and generator protection type +GC with enhanced functionalities for measurement and communication

Applications

  • overvoltage protection
  • differential protection
  • generator protection, control and monitoring
  • feeder protection, control and monitoring
  • transformer protection
  • motor protection
  • distance protection
  • line differential protection
  • voltage and frequency protection
  • synchro-check
  • automatic synchronization
  • concurrency and protection
  • dynamic grid support
  • RING protection and communication redundancy
  • protection for low and medium voltage soft starters
  • GCP generator control panel SYNC+P
  • bay control
  • power generation and power plant controller (EZA/EZE)

Features

  • stainless steel housing with aluminium front
  • shallow depth – 90 mm depth incl. terminal plugs
  • 3 status LEDs
  • full colour touchscreen display
  • remote display / detached HMI (optional)
  • customizable menu screens
  • multilingual HMI
  • 8 programmable LEDs
  • pluggable connections
  • expandable with additional I/O boards
  • USB connections as standard
  • RS 485 with Modbus RTU as standard
  • control and interlocking of up-to 8 switching elements
  • IEC: 61850, 60870-5-103, 104, Modbus RTU/TCP, Profibus DP, CANBUS
  • up-to 5 communication protocols can be used at the same time
  • high-speed GOOSE
  • 4 processors for ultimate reliability and speed
  • self-diagnostic
  • various protection functions included in standard version
  • 4 independent protection setting groups
  • independent and simultaneous protection for CT1 and CT2
  • event-driven architecture system with powerful extension capabilities
  • easy-to-use SYMAP®Compact parameter tool

General features:

  • maximum protection functionality according to U‌‍/‌‍I measurement inputs
  • small form factor
  • type-certified according to VDE 4110 and 4120
  • colour touchscreen
  • multi-lingual HMI
  • expandable with additional I/O boards
  • reactive power undervoltage protection (QU)
  • power plant controller (EZA) - SYMAP®Compact+

Particular features of SYMAP®Compact+GC:

  • reactive power undervoltage protection (QU)
  • independent overcurrent time-lag protection (UMZ)
  • network and system protection (NA)
  • distance protection ANSI 21
  • power plant controller (EZA)

Grid Code Compliance:
VDE-AR-N 4110:2018-11 / medium voltage (FGH certified), VDE-AR-N 4120:2018-11 / high voltage (FGH certified), G99


HMI Human Machine Interface

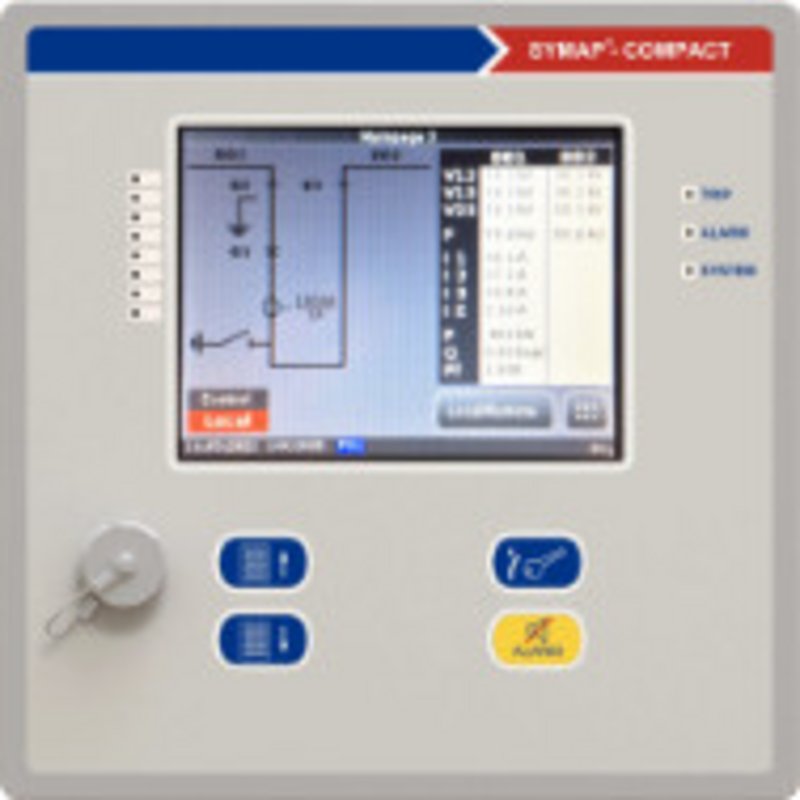

SYMAP®Compact+ HMI is highly customizable and user-friendly.

Display

  • large full colour touchscreen with user-friendly interface
  • user-defined function keys
  • 4 configurable user pages: single line, measurement indications, text, buttons, bar graphs, graphics, configurable background, graphic elements, button colour, page links …
  • adjustable parameters via HMI
  • password-protected access and user-level role

Keys

  • keys on touchscreen and front plate

LEDs (standard device)

  • 8 programmable LEDs (optional with push buttons)
  • 3 status LEDs (system and user-programmable status)
  • graphical, programmable LEDs on touchscreen

Options

  • 6 programmable LEDs
  • switch functions (optional)
Alarms

Alarms

The active alarm page is automatically activated when an alarm occurs. Up-to 464 alarms can be set in the alarm list with up-to 50 alarm groups. With every alarm it is possible to set the following:

  • two trigger events
  • alarm text
  • conditions: OFF, Latched, Unlatched and No ACK
  • text colour, LED colour and graphic LED colour
  • blocking events
  • alarm groups
  • recording of alarms in recorder functions
  • remote ACK
  • acoustic alarm
PLC

PLC

A large number of PLC logics and function blocks, user-programmable inputs and outputs and predefined logical event numbers allows the user to create powerful control and automation functions.

Type No. of available logic elements
AND/OR 500
NOT (inverter) 30
XOR (exclusive OR) 20
Flip-Flop 20
Counter 20
Timer 80
Timer switch 20
Recorder

Recorder

Event recorder

The event history saves up-to 10.000 events by using the first-in-first-out (FIFO) principle. Each event provides information such as

  • the consecutive number
  • the event number
  • the event text
  • date and time stamp

Events are recorded with a temporal resolution of 1 ms and will be displayed in chronological order. The latest event is on top of the event list.

Fault recorder

The fault recorder saves up-to 1.000 recordings by using the first-in-first-out (FIFO) principle. The fault recorder records:

  • all relevant file information (record number, trigger-event number, event text, date and time stamp)
  • all available measuring values of current, voltage and frequency (depending on the SYMAP®Compact+ device variant) for one record

Disturbance recorder

For the “disturbance recorder” function, the device is equipped with a volatile 20 MB RAM-memory to buffer the measuring data. That RAM-memory can be divided in up-to 10 individual memory sections (buffers for recorded  data). One record  can be max. 63,31 s long.





Communication

Communication

The total number of  protocols that can be run simultaneously depends on the number  of communication interfaces. The protocols under Ethernet interface Modbus TCP, IEC 61850 and  IEC 60870-5 can always work simultaneously.

Communication interface

Standard port

  • one USB-A (on front plate; for parameter setting)
  • one Mini-USB (on the side for parameter setting)
  • one CANBUS 1 (factory protocol)
  • one CANBUS 2 (factory protocol - optional)
  • one RS485 port

Optional

  • one fiber optic interface (line diff. protection / SCADA)
  • one RS485 port (Modbus RTU or IEC 60870-5-103)
  • one RJ45 service port (side)
  • one RJ45 port (rear)
  • two RJ45 ports (rear)
  • one fiber optic port (rear)
  • two fiber optic ports (rear)
  • IRIG-B port

Protocols

  • Profibus DP (option)
  • Modbus RTU (standard)
  • Modbus RTU redundant (option)
  • Modbus TCP/IP (option)
  • IEC 60870-5-103 (option)
  • IEC 60870-5-104 (option)
  • IEC 61850 Ed. 1 & Ed. 2 (option)
  • proprietary protocols

Network protocols and time synchronization

  • RSTP (rapid spanning tree protocol)
  • HSR (high-availability seamless redundancy), IEC 62439-3
  • PRP (parallel redundancy protocol), IEC 62439-3
  • SNTP (simple network time protocol)
  • IRIG-B
High-speed GOOSE

High-speed GOOSE

GOOSE

SYMAP®Compact+ with a number of virtual inputs and outputs allows to extend the use of GOOSE messages for various applications. Most important, it can provide additional safety and flexibility for a wide range of applications.

  • 128 virtual inputs
  • 128 virtual outputs

High-Speed GOOSE

Under normal conditions, the response time for GOOSE messages incl. application time is approx. 2,7 ms. Under GOOSE performance testing conditions (abnormal conditions), the response time can be up-to 1-1,5 ms longer. However, messages are never lost and there is no further processing.

SYMAP®Compact+

  • time span for application and communication approx. 2,7 ms
  • time for communication approx. 0,5 ms
Extension Board System – EBS

Extension Board System – EBS

The number of binary inputs and outputs can be increased with the Extension Board System (EBS). It consists of several board types with different functions. Each board is designed for DIN rail mounting according to standard DIN TS35. The maximum number of binary inputs and outputs  via extension boards besides the SYMAP®Compact+ basic unit are:

  • 50 EBS binary inputs
  • 24 EBS binary outputs

EB-PS

  • power supply
  • 1 system LED
  • 3 RJ45 ports and 3 binary inputs with LED status
  • 3 BIs (Un: 12/24/48/60/220 V DC; 110 V AC/DC; 230 V AC: parameterizable)

Housing dimensions (W×H×D): 91,5 x 91,5 x 76,2 mm

EB-BI8-A

  • 8 binary inputs with LED status
  • 2  independent voltage groups
  • BIs (Un: 12/24/48/60/220V DC; 110V AC/DC; 230V AC: parameterizable)

Housing dimensions: (W×H×D): 91,5 x 30,5 x 76,2 mm

EB-BI10-OC

  • 10 binary inputs (opto-couplers)
  • 2 independent voltage groups
  • BI s (Un: 12/24/48/60/220V DC; 110V AC/DC; 230V AC: parameterizable)

Housing dimensions: (W×H×D): 91,5 x 30,5 x 76,2 mm

EB-BO6-R-6

  • 6 binary outputs (NO contacts)

Housing dimensions: (W×H×D): 91,5 x 30,5 x 76,2 mm

EB-BO4-R-4

  • 4 binary outputs (change-over contacts)

Housing dimensions: (W×H×D): 91,5 x 30,5 x 76,2 mm


Dimensions

Dimensions

SYMAP®Compact+ has a compact housing with a small depth. The 90 mm depth including terminal plugs is suitable for almost any compartment, for both shallow and/or narrow compartments.
For retrofit projects it can save additional mechanical extensions and work when mounting and adjusting the device on the compartment door.

Width: 210 mm
Height: 250 mm
Depth: 90 mm (incl. terminal plugs)
Weight: approx. 2,5 kg

Reliability and security

Reliability and security

SYMAP®Compact+ has up-to five microcontrollers for better performance and reliability. One microcontroller for measurement and protection functions (MU), one for control functions (CU), one for the graphic unit (GU), one for communication (ComU) and one for additional inputs and outputs (EBS). In the rare case of a broken touchscreen or damaged graphic unit, the device can still work, or, in case the robust communication card is in failure, protection and control will still work. If control  or protection is in failure, the communication card can remotely send the alarm message that the device is in failure. The intermediate communication between microcontrollers covers different sorts of watchdog functions and self-diagnostic tasks.

Five micro-controllers:

  1. Control Unit – CU
  2. Measurement and Protection functions – MU
  3. Graphic Unit – GU
  4. Communication Unit – ComU (optional)
  5. Extension Board System (I/O) – EBS (optional)

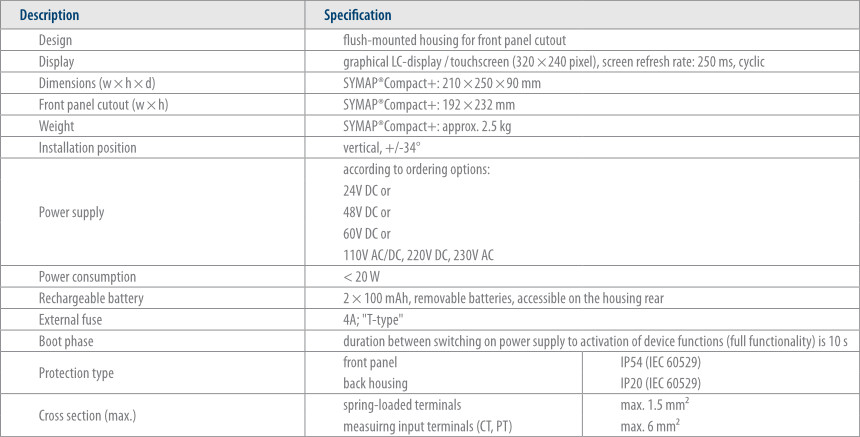

Technical table

Technical table

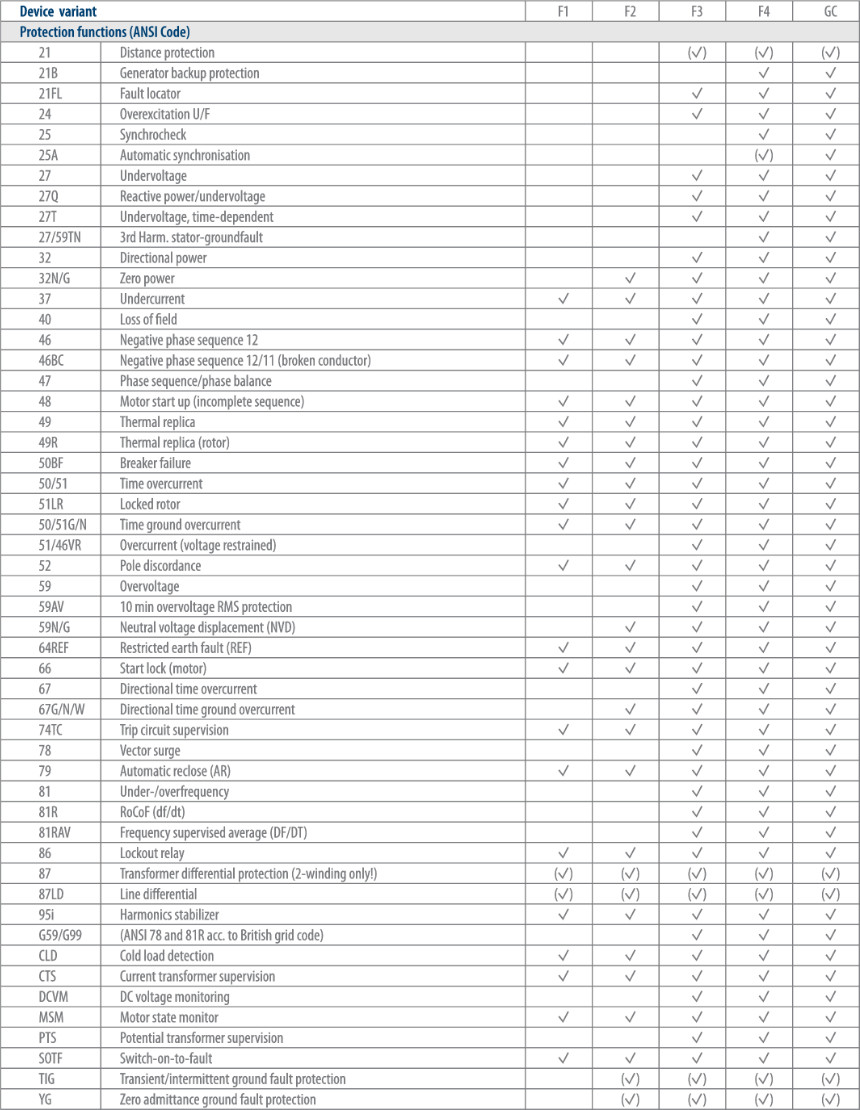

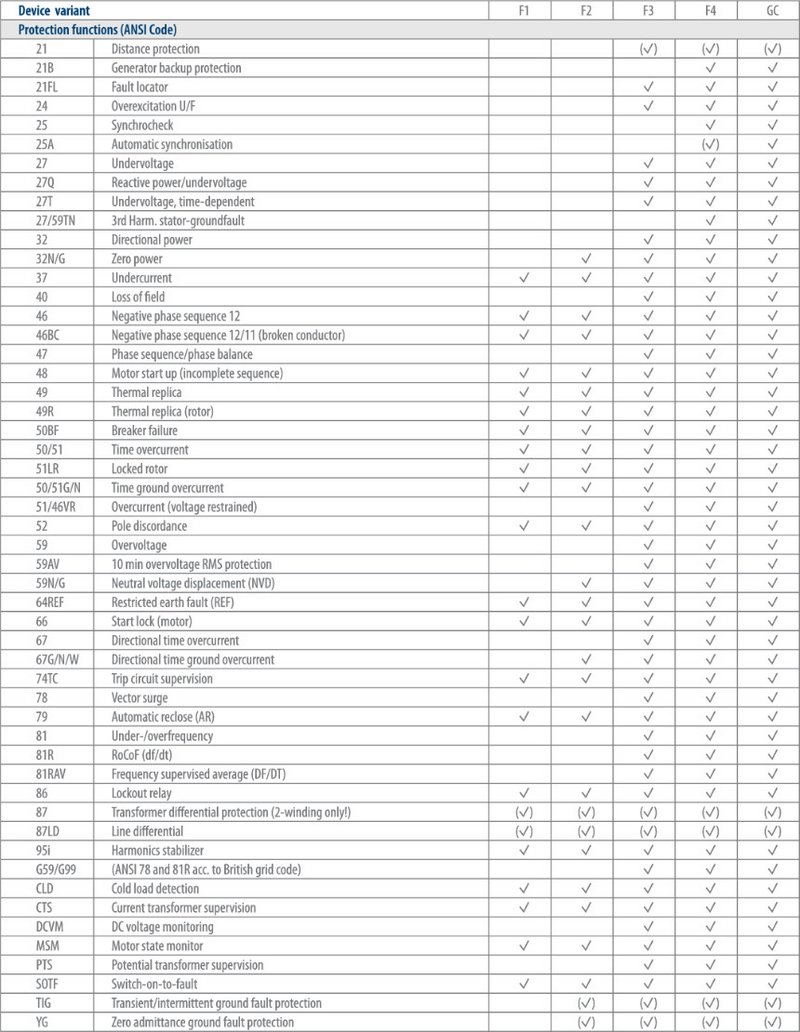

Protection functions

Protection functions

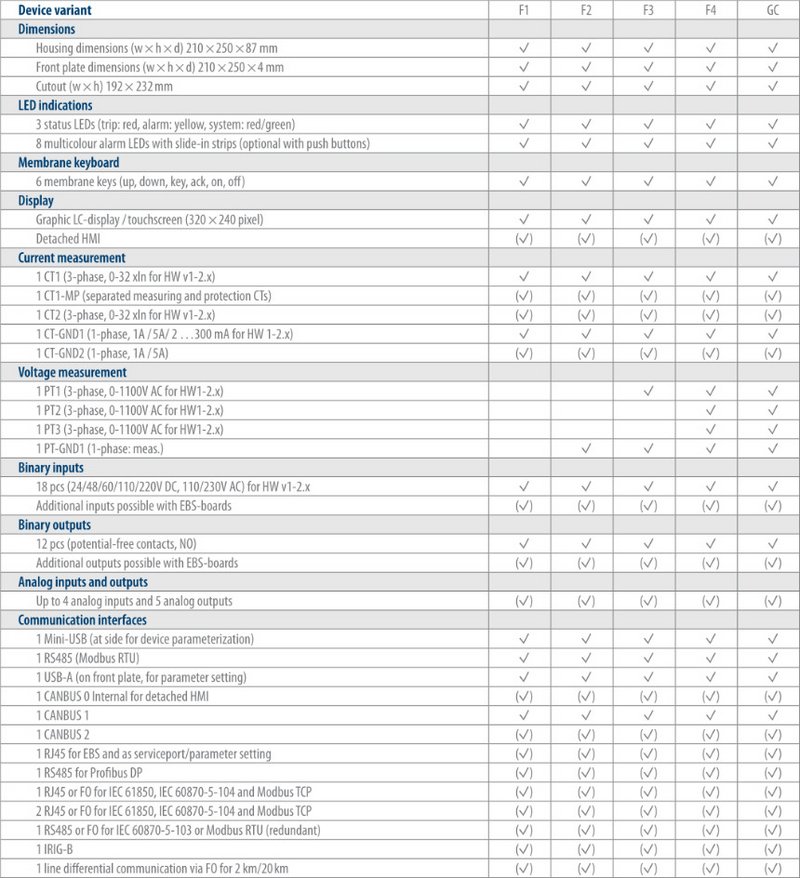

Hardware capabilities

Hardware capabilities

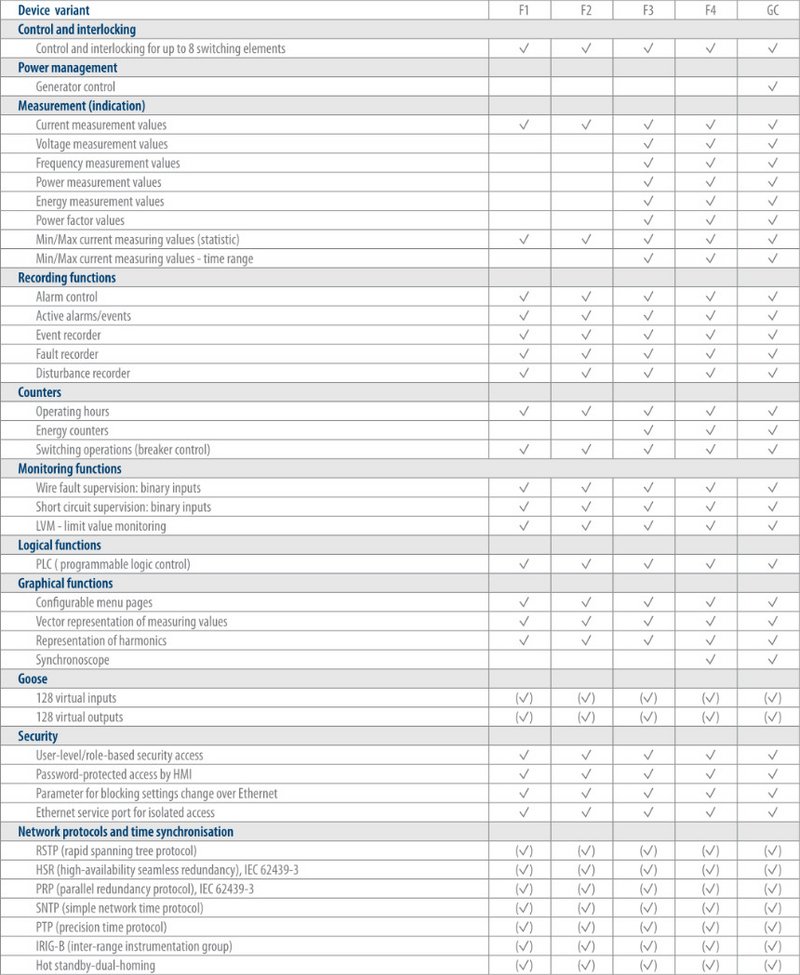

Software functions

Software functions
